Using
the BW Connector With Multiple Phone Lines:
|
(Click
on images for larger view)
| 1) |
 |

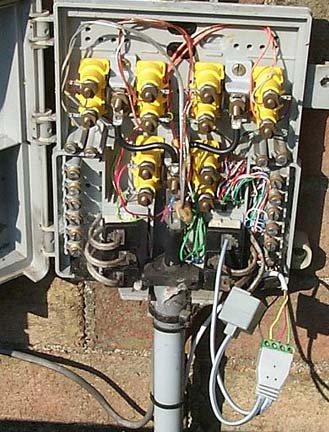

| This is an actual telephone line interface, which as you can see, has the availability of 6 incoming lines. Two are actually in use, and this is a typical “real world” installation situation. Lots of wires! | |
| 2) |
 |
| This photo
shows the BW-1 connected, and as you can see, all we did
was to run the 4-conductor line from the alarm system, connected
it to the 4 screw terminal header on the BW-1, and just
plugged it in!
Line
seizure is accomplished without pulling out the customer’s
wires, cutting, splicing, or even touching the existing
phone connection.
|
|
| 3) |
 |

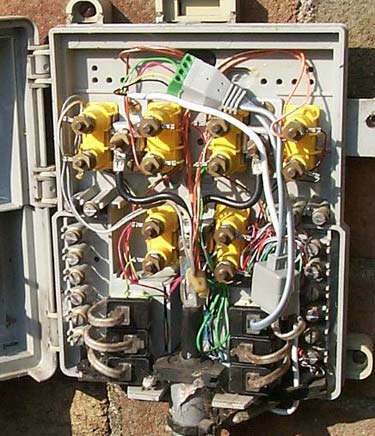

| Even in this crowded interface, there is plenty of room to place the BW-1 safely back into the box. | |
| 4) |
 |
| Now that your phone line connection has been made, close the box, and you're done! | |
